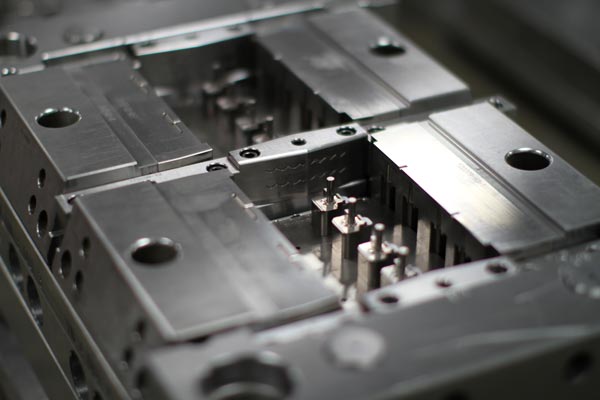

In the field of industrial manufacturing, injection molds are the core tools for mass production of injection-molded parts and are widely used in many industries such as automotive, electronics, medical, and home appliances. They are often referred to as the “mother of industry.” The quality of molds directly affects the precision, performance, and production efficiency of injection-molded products. Therefore, the mold acceptance process is of utmost importance. Dongguan Yize Mold Co., Ltd., as a professional enterprise in the industry, will provide you with a detailed introduction to the key regulations for mold acceptance in injection molding factories.
I. Material and Material Usage Acceptance
The material and material usage of molds are the foundation for ensuring mold performance and service life. Different types of steel have unique physical and chemical properties, suitable for different production scenarios and product requirements. During acceptance, it is necessary to strictly distinguish the types of steel used and ensure that they meet the design requirements. At the same time, a professional hardness tester should be used to accurately measure the hardness of the steel. The hardness指标 (this Chinese word can be replaced with “value” in English context if more appropriate) must reach the established standards to ensure that the mold has sufficient wear resistance and compressive strength during long-term high-intensity production, preventing premature mold damage or product quality defects due to material problems.
II. Surface Treatment Acceptance
The quality of surface treatment inside the mold has a direct impact on the appearance and demolding performance of injection-molded products. A common surface treatment method such as polishing aims to achieve a certain level of smoothness on the inner surface of the mold, reducing surface defects on the products and friction, ensuring smooth product demolding. During acceptance, carefully check whether the surface treatment inside the mold is uniform and smooth, and whether there are any scratches, burrs, or other defects to ensure that the surface quality of injection-molded products meets high standards.
III. Dimensional Accuracy Acceptance
The dimensional accuracy of molds is the key factor determining the dimensional accuracy of injection-molded products. During the acceptance process, high-precision measuring tools such as coordinate measuring machines should be used to strictly inspect all key dimensions of the mold to ensure that they are highly consistent with the dimensional tolerance ranges specified in the design drawings. Only when the mold dimensions are precise can injection-molded products with stable dimensions and suitable for assembly be produced, avoiding problems such as the inability to use the products normally or affecting the overall product performance due to dimensional deviations.
IV. Runner and Cooling Channel Design Acceptance
Reasonable runner and cooling channel designs are crucial for the injection molding process. The runner design directly affects the flow state and filling effect of the plastic melt inside the mold. A reasonable runner layout can ensure uniform and rapid filling of the mold cavity by the plastic, reducing internal stress in the products and avoiding defects such as short shots and burn marks. The cooling channel design is related to the cooling efficiency of the mold. An effective cooling system can quickly reduce the mold temperature, shorten the molding cycle, improve production efficiency, and ensure the dimensional stability of the products. During acceptance, a comprehensive evaluation of the runner and cooling channel designs should be conducted to check whether they meet the process requirements and ensure the smooth progress of the injection molding process.
V. Cavity Quality Acceptance
The cavity is the direct space for forming injection-molded products, and its quality directly determines the appearance and internal quality of the products. During acceptance, carefully check whether there are any scratches, impacts, corrosion, or other defects inside the cavity. These defects will not only affect the aesthetic appearance of the products but may also lead to problems such as rough product surfaces and reduced strength. Therefore, it is essential to ensure good surface quality of the cavity to provide a guarantee for producing high-quality injection-molded products.
VI. On-Mold Trial Injection and Product Inspection Acceptance
On-mold trial injection is a key step in mold acceptance, comprehensively testing the mold performance and product quality through actual injection molding production. During the trial injection process, accurately measure the dimensions of the injection-molded parts to ensure they meet the design requirements; conduct assembly tests to verify the assembly accuracy and fit between the product components; perform tests such as throwing and twisting to evaluate the mechanical properties and durability of the products; and carefully inspect the product appearance for defects such as color differences, bubbles, and weld lines. Only when the injection-molded parts meet all the inspection indicators can the mold be considered as having passed the acceptance.
FAQ
Q: If there is a slight dimensional deviation during mold acceptance, is it acceptable?
A: This depends on whether the dimensional deviation is within the tolerance range specified in the design drawings. If the deviation is within the allowable tolerance range, it is usually acceptable; but if it exceeds the tolerance range, it may affect the assembly and performance of the products, and the mold factory needs to make adjustments and repairs until the dimensions meet the requirements.
Q: What are the impacts of substandard mold surface treatment?
A: Substandard mold surface treatment will lead to surface defects on injection-molded products, such as scratches and pits, affecting the appearance quality of the products. At the same time, an unsmooth mold surface will increase the friction between the products and the mold, making demolding difficult and potentially damaging the products or the mold.
Q: What problems will occur in injection molding production if the runner design is unreasonable?
A: An unreasonable runner design may cause uneven flow of the plastic melt inside the mold, resulting in local underfilling or overfilling, and thus defects such as short shots, burn marks, and bubbles. In addition, an unreasonable runner design will also increase the injection pressure and molding cycle, reducing production efficiency and increasing production costs.
Q: If problems occur with the mold during normal use after it has passed acceptance, is the mold factory responsible?
A: Generally, if problems occur with the mold during normal use and are caused by quality defects or unreasonable design of the mold itself, the mold factory should be responsible and repair or replace the mold. However, if the problems are caused by improper use, operational errors, or force majeure factors, the mold factory may not be responsible. The specific division of responsibilities should be determined according to the contract and relevant agreements signed by both parties.
