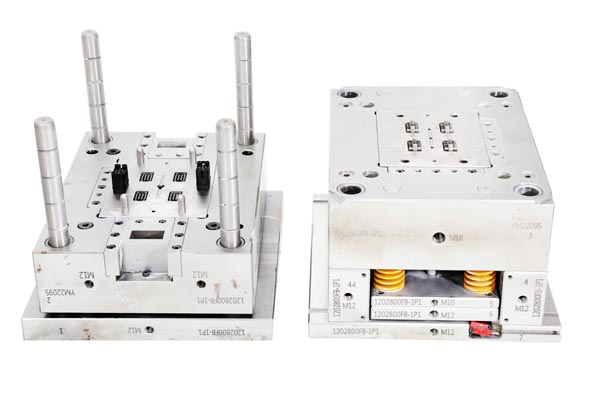

In the precision injection molding process, the cooling effect of the mold is of utmost importance as it directly affects the quality of the plastic parts, the molding cycle, and production efficiency. So, what exactly are the factors that influence the cooling of precision injection molds?
I. Mold Design-Related Factors
The shape of the plastic part and the design of the parting surface are significant factors affecting mold cooling. Complex-shaped plastic parts often have uneven heat distribution, posing challenges for mold cooling design. For example, plastic parts with thin-walled and thick-walled transition areas cool at different rates during the cooling process. If the parting surface design is unreasonable and fails to provide effective cooling layouts for different thickness regions, it can easily lead to uneven cooling of the plastic parts, resulting in internal stresses and affecting the part quality.
The geometric parameters and spatial arrangement of the cooling channels are also crucial. The diameter, length, and shape of the cooling channels, as well as their distribution positions within the mold, all significantly impact the cooling effect. Reasonable channel diameters and lengths ensure sufficient flow space for the cooling medium inside the channels, enabling good heat exchange. A scientific spatial arrangement, such as using conformal cooling channels, allows the cooling medium to be closer to the surface of the plastic part, improving cooling efficiency and reducing cooling time.
II. Cooling Medium-Related Fctors
The type, temperature, and flow rate of the cooling medium are key factors influencing mold cooling. Different types of cooling media have varying thermal conductivity properties. For instance, water has a relatively high specific heat capacity and thermal conductivity coefficient, providing good cooling effects. However, in some special cases, such as high-temperature environments or situations with high anti-rust requirements, oil or other specialized cooling media may be needed.
The temperature of the cooling medium directly affects the cooling speed of the mold. A lower cooling medium temperature can more rapidly remove heat from the mold and the plastic part, shortening the cooling time. However, an excessively low temperature may cause significant internal stresses within the plastic part, even leading to cracking. The flow rate of the cooling medium determines the efficiency of heat exchange. A higher flow rate can accelerate heat transfer, but an excessively high flow rate may increase energy consumption and equipment wear.
III. Molding Process-Related Factors
The melt temperature has an important impact on mold cooling. A higher melt temperature means that the plastic part carries more heat during the molding process, requiring a longer cooling time to reach the ejection temperature. At the same time, an excessively high melt temperature may also cause significant shrinkage of the plastic part during cooling, affecting dimensional accuracy.
The required ejection temperature of the plastic part and the mold temperature are also key factors. An appropriate ejection temperature ensures the smooth demolding of the plastic part, preventing damage due to sticking to the mold. The uniformity and stability of the mold temperature are crucial for the molding quality of the plastic part. A lower mold temperature can reduce the molding shrinkage rate of the plastic part. Uniform mold temperature, short cooling time, and fast injection speed can minimize the warping deformation of the plastic part. For crystalline polymers, increasing the mold temperature can stabilize the part size and prevent post-crystallization phenomena, but it will lead to a longer molding cycle and brittleness of the plastic part. As the crystallinity of crystalline polymers increases, the stress cracking resistance of the plastic decreases, and lowering the precision injection mold temperature is beneficial. However, for high-viscosity amorphous polymers, since their stress cracking resistance is directly related to the internal stresses of the plastic part, lowering the precision injection mold temperature and filling speed is beneficial for reducing the makeup time.
IV. Interactive Factors between Plastic Parts and Molds
The thermal cycle interaction between the plastic part and the mold cannot be ignored. During the injection molding process, continuous heat exchange occurs between the plastic part and the mold, which affects the temperature distribution and cooling effect of the mold. For example, during continuous production, the mold gradually accumulates heat. If the heat cannot be effectively dissipated promptly, the mold temperature will rise, which in turn affects the cooling speed and quality of the plastic part. In addition, the size, structure, and performance requirements of the plastic part also influence mold cooling. Larger-sized plastic parts require a longer cooling time, while plastic parts with special structures may need special cooling designs to meet their cooling needs.
In conclusion, the factors influencing the cooling of precision injection molds are multifaceted, covering areas such as mold design, cooling media, molding processes, and the interaction between plastic parts and molds. In actual production, it is necessary to comprehensively consider these factors and optimize the design and process parameters to achieve efficient mold cooling, thereby improving the quality of plastic parts and production efficiency.
