Infusion and Respiratory Systems

Custom Infusion and Respiratory Systems

Yize Mould provides a one-stop solution for customized liquid silicone injection molding, including free injection molding quotes, professional design for manufacturability (DFM) analysis, rapid prototyping, mass production, and process improvement suggestions. Through optimized design and strict quality management, we ensure efficient production and excellent performance of finished injection molded products. For customized solutions or more information, please feel free to contact us!

We have a Class 10K (ISO Class 7) Cleanroom for injection molding.
The fastest T1 sample for injection molding is available in 4 weeks.
The processing accuracy of injection molding can reach 0.02mm.
We are certified of ISO 9001, ISO 13485, ISO 14001, and IATF 16949.

Upload a drawing to get the best price for your program!

Custom Liquid Silicone Injection Molding

Yize Mould specializes in providing customized liquid silicone injection molding services, covering mold design, manufacturing, and optimization to ensure high-precision and high-efficiency production. We support a variety of complex structures and special material requirements, making us suitable for prototype development and large-scale injection molding production. Our injection molding machines range from 30T to 280T. With strict quality management and a professional technical team, we help you quickly realize the full process from product design to production. For more information or to get a free quote, please contact us!

DFM & Mold Design

The design phase is the core of mold development. By thoroughly analyzing the manufacturability of the product design (DFM) and optimizing the part structure, we ensure that the mold design not only meets production requirements but also maximizes cost reduction and efficiency improvement.

Mold Manufacture

Precision machining is crucial for mold quality. Yize Mould adopts advanced CNC machining and electrical discharge machining processes, coupled with high-precision measurement equipment for quality inspection, to ensure that the mold meets design specifications while achieving high precision and long service life.

Molding and Mass Production

Through multiple rounds of mold trials (T1, T2, etc.), we verify the mold performance, adjust details such as gates and cooling systems, and ensure that the final product quality meets standards while optimizing production efficiency. We strive to meet customer requirements to the greatest extent possible.

Our Strength of Liquid Silicone Injection Molding

Yize Mould boasts an experienced mold design team proficient in various design software and complex structural optimization, specializing in the innovative design of high-precision molds, medical molds, and hot runner molds. Through professional DFM analysis, advanced design concepts, and strict quality standards, we provide efficient and reliable customized mold solutions for automotive, medical, precision electronics, and other industries, ensuring long mold life, easy maintenance, rapid response, and efficient delivery.

2006

Founded in

0.02mm

Min. tolerance

2000㎡

Cleanroom

ISO 13485

Certification

Cases of Liquid Silicone Injection Molding

Cleanroom Injection Molding is widely used in the medical industry and other high-tech industries, covering various needs from medical devices to medical consumables, as well as injection molding of precision electronic communication products. Each type of mold has its unique design requirements, manufacturing challenges, and application scenarios. Below are several common types of case studies for cleanroom injection molding processing.

Oxygen Mask

Liquid Silicone Rubber (LSR), characterized by its high purity, excellent biocompatibility, softness, transparency, and high-temperature resistance, has become an ideal material for medical respiratory products (such as oxygen masks, respiratory masks, nasal masks, etc.). Through precision injection molding processes, liquid silicone rubber oxygen masks can achieve high transparency, a soft and snug fit, and long-lasting durability, providing patients with a safer and more comfortable oxygen inhalation experience.

Injection Molding Materials:	LR3003 LR6250 3070 2060 4020 2080 KEG-2000
Mold Materials:	P20, S136, and others, depends on customers' requirement
Molding Environment:	2000m² Class 10000 CLeanroom (ISO Class 7)
Injection Molding Mcahines:	FANUC, YIZUMI, NISSEI, etc, ranges from 30T to 280T.
Price:	Negotiable, depends on the product
Lead Time:	40-90 days, depends on the product

Infusion Set

Leveraging its professional expertise in liquid silicone rubber (LSR) injection molding, mold design, and cleanroom production, Yize Mould can provide medical clients with integrated injection molding solutions for a series of infusion set components, helping medical device products achieve higher safety standards and an enhanced user experience.

Injection Molding Materials:	LR3003 LR6250 3070 2060 4020 2080 KEG-2000
Mold Materials:	P20, S136, and others, depends on customers' requirement
Molding Environment:	2000m² Class 10000 CLeanroom (ISO Class 7)
Injection Molding Mcahines:	FANUC, YIZUMI, NISSEI, etc, ranges from 30T to 280T.
Price:	Negotiable, depends on the product
Lead Time:	40-90 days, depends on the product

Catheter Connector

Liquid silicone rubber (LSR), renowned for its high purity, biocompatibility, and excellent elasticity, is widely used in the injection molding of medical catheter connectors. LSR medical catheter connectors are commonly employed in infusion systems, respiratory equipment, urinary catheters, sampling devices, etc., requiring products to possess high sealing performance, tear resistance, and long-term physiological inertness.

Injection Molding Materials:	LR3003 LR6250 3070 2060 4020 2080 KEG-2000
Mold Materials:	P20, S136, and others, depends on customers' requirement
Molding Environment:	2000m² Class 10000 CLeanroom (ISO Class 7)
Injection Molding Mcahines:	FANUC, YIZUMI, NISSEI, etc, ranges from 30T to 280T.
Price:	Negotiable, depends on the product
Lead Time:	40-90 days, depends on the product

Stop Valve

The LSR stop valve made of liquid silicone rubber (LSR) is a critical component used in medical infusion, sampling, catheter, and in vitro diagnostic equipment. Its core function is to enable one-way fluid control and automatic sealing, preventing the backflow of liquids or gases. Given the extremely high requirements for precision, sealing performance, and biocompatibility in such products, liquid silicone rubber has become an ideal molding material.

Injection Molding Materials:	LR3003 LR6250 3070 2060 4020 2080 KEG-2000
Mold Materials:	P20, S136, and others, depends on customers' requirement
Molding Environment:	2000m² Class 10000 CLeanroom (ISO Class 7)
Injection Molding Mcahines:	FANUC, YIZUMI, NISSEI, etc, ranges from 30T to 280T.
Price:	Negotiable, depends on the product
Lead Time:	40-90 days, depends on the product

Data of Liquid Silicone Injection Molding

	Data
Injection Mold Tolerance	±0.015 mm
Thin-wall Injection Molding up to	0.15 mm
Min. Injection Molding Tolerance	±0.02 mm
Mold Materials	S136, SKD11, P20 etc. Depends on the client’s needs.
Available Injection Molding Materials	Liquid Silicone Rubber, PC, PP, PA66, PEEK, LCP, PPSU, PFA, FEP etc.
Mold Life	100,000-1,000,000 Shots
Main products	Automotive connectors, medical devices, medical supplies, PFA Teflon injection molding, electronic communication products, other precision injection molding, etc.
Injection Molding Size	Max. 320mm，450g
Gate Design	Spot Gate, Hot Runner, Side Gate, etc.
Delivery time:	Usually around 40 days, depending on the difficulty of the product.

Our Comapny Profile

Yize Mould’s main business covers precision parts processing, injection mold design and manufacturing, cleanroom injection molding etc.

Steps for liquid silicone injection molding

For products requiring cleanroom injection molding, the steps include demand analysis and design confirmation, mold design and DFM (Design for Manufacturing) analysis, material selection and procurement, mold machining and manufacturing, mold assembly and debugging, mold trial and adjustment, mass production of injection molded products, as well as after-sales service and maintenance. These steps ensure that the injection-molded products meet customer requirements, are processed precisely, and optimized through mold trials, ultimately delivering high-quality, durable injection molded products that satisfy customer needs.

/01 Requirement Analysis and Design Communication

Requirement analysis and design communication are crucial steps in ensuring the success of customized mold opening and injection molding. Effective communication ensures that all parties involved in the project (clients, designers, engineers, mold manufacturers, etc.) have a clear and consistent understanding of the requirements and design plan.

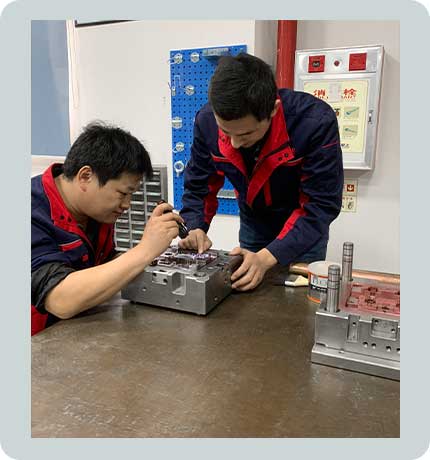

/02 Mold Assembly and Debugging

Mold assembly and debugging are vital stages in the mold manufacturing process, directly determining the final usage effect and production efficiency of the mold. During this stage, various manufactured components are assembled into a complete mold, and through mold trials and debugging, it is ensured that the mold can operate smoothly and efficiently.

/03 Raw Material Mixing

Liquid silicone rubber is divided into two components, A and B, which are precisely mixed in a 1:1 ratio using an automatic proportioning mixing pump. Color masterbatches can be added to achieve color matching. The entire process is fully sealed and pollution-free, ensuring the cleanliness of the raw materials.

/04 Injection Molding

The mixed silicone rubber is injected into a high-temperature mold cavity (approximately 170–200℃) through a cold runner system. Liquid silicone rubber exhibits excellent flowability and self-demolding properties, making it suitable for producing precision, thin-walled, and complex structural parts.

/05 Curing and Demolding

After curing, the products are automatically demolded using mechanical ejection or pneumatic systems. Due to the non-stick properties of liquid silicone rubber, demolding is fast, and the product surface has a high degree of smoothness and gloss.

/06 Inspection and Packaging

The products are packaged in dust-free packaging to maintain cleanliness, making them suitable for use in medical, laboratory, infant and child care, wearable device, and other fields.

Yize Mould
Various Liquid Silicone Injection Molding Solutions Provider

Medical liquid silicone rubber (LSR) injection molding is renowned for its high purity, excellent biocompatibility, high-temperature resistance, and sterilization capability. It is widely applied in five major fields: infusion and respiratory systems, surgical and implantable devices, diagnostic and laboratory equipment, wearable medical devices, as well as infant and care products. Yize Mould provides one-stop solutions for medical-grade LSR injection molding, ensuring high precision, cleanliness, and reliability of products.

Surgical and Implantable Devices

Yize Mould offers liquid silicone rubber injection molding solutions for medical surgical and implantable devices, ensuring high precision, biocompatibility, and stability. These solutions are suitable for implantable devices such as soft pouches and seals, meeting stringent medical standards for sterility, safety, and long-term use.

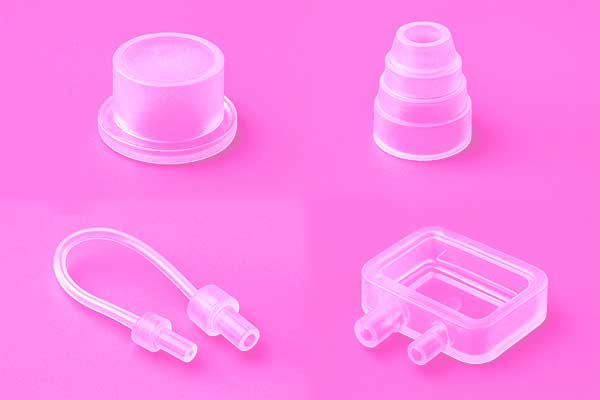

Diagnostic and Laboratory Equipment

Liquid silicone rubber injection molding provides high-purity, high-precision, and high-reliability production solutions for diagnostic and laboratory equipment. It meets the rigorous requirements of high-end fields such as biological testing, analytical equipment, and laboratory consumables, delivering safe, stable, and long-lasting silicone components for laboratory use.

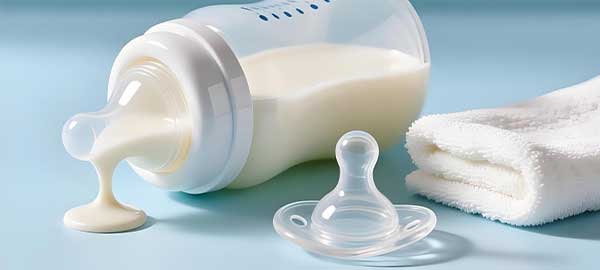

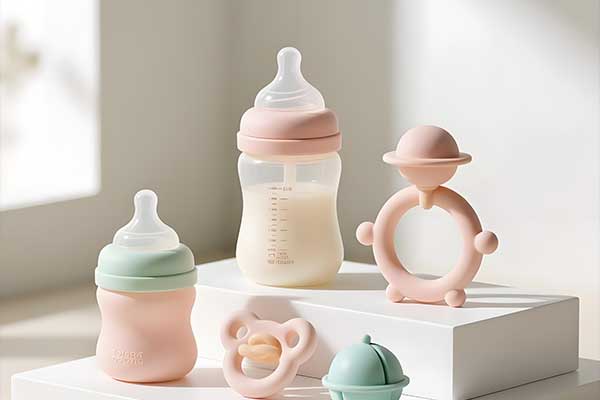

Infant and Care Products

Yize Mould provides liquid silicone rubber injection molding solutions for infant and care products, covering a range of LSR items such as nipples, teething gels, breast pump accessories, breast milk storage lids, and care pad seals. These products are safe and environmentally friendly, suitable for the infant and care sectors.

Trusted Liquid Silicone Injection Molding Factory

Dongguan Yize Mould Co., Ltd. was established on January 1, 2007, with 170 employees, and is located in Chang’an Town, Dongguan City, known as the “Key Town of China’s Mould Industry”.

Since its establishment, Yize has always focused on technology as its core, specializing in automotive connectors, thin-wall injection molding, micro-injection molding, precision injection molding, and special material injection molding, and has gradually expanded its business to cover overall solutions for PFA Teflon products, precision medical devices, and various special engineering plastic precision structural components.

Yize Mould continuously innovates and develops, becoming a leader in the field of high-end precision mold manufacturing and related products, and is a trustworthy manufacturer of precision injection molds.

Applications

Medical LSR injection molding is currently one of the most widely used and most precise forming technologies in medical device manufacturing. Liquid silicone rubber (LSR) possesses high purity, excellent biocompatibility, high-temperature resistance, aging resistance, and the ability to withstand repeated sterilization, making it highly suitable for the stringent requirements of medical environments.

Why Choose Us?

/01
Professional Team

Yize Mould has been specializing in precision molds, non-standard precision parts, and related products since 2006, and today boasts a professional team of 150 people who can quickly respond to customer needs.

/02
Advanced Equipment

The company owns multiple advanced processing equipment imported from the United States, Japan, and other places. Injection molding precision can reach 0.02mm.

/03
Quality Assurance

Yize Mould always adheres to the principle of quality first, with over 50 precision testing instruments and a professional quality management team to ensure that no defective products reach our customers!

Medical Injection Molding Case

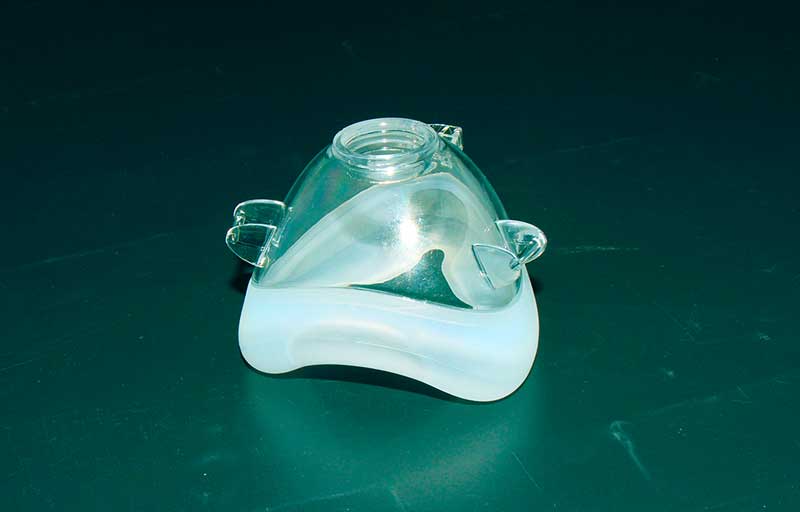

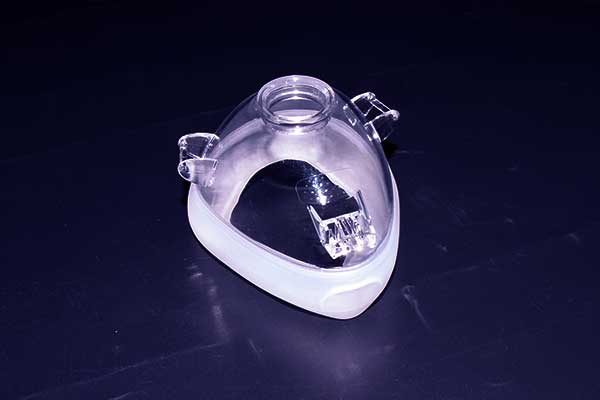

The image on the right shows the respiratory masks meticulously manufactured by our company for clients in the medical infusion and respiratory systems sectors. Crafted from premium medical-grade liquid silicone rubber, these masks are injection-molded in a Class 10,000 cleanroom with dimensional accuracy to within 0.05mm. Featuring high transparency and exceptional durability, they meet the stringent demands of the medical field with superior cleanliness and precision.

Class 10,000 Cleanroom Environment: The cleanroom meets Class 10,000 standards, ensuring that products are manufactured in a dust-free environment, effectively avoiding external contamination.
Medical-Grade LSR Material: Made from high-temperature resistant and impact-resistant medical-grade LSR material, fully compliant with medical industry standards.
Ultra-High Precision Manufacturing: The overall precision is controlled within 0.05mm, guaranteeing product consistency and high reliability.
Advanced Injection Molding Technology: Employing leading injection molding techniques to ensure a smooth, flawless surface and superior quality of the product.
Full-Process Quality Control: From raw material storage to finished product shipment, every step undergoes rigorous testing to ensure top-notch product quality.
Customized Production Services: Providing personalized customized production and design support based on customer needs to meet diverse requirements.

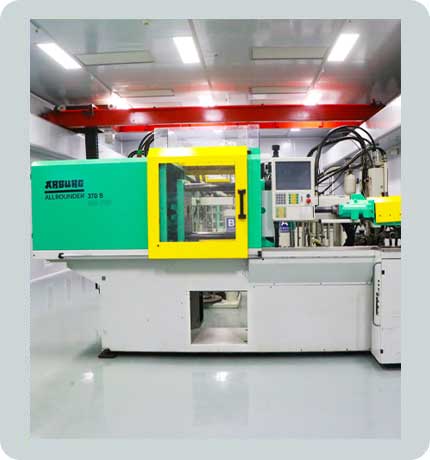

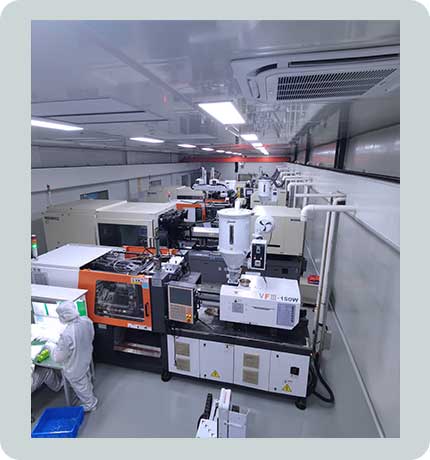

Sterile Cleanroom Production Environment

Yize Mould boasts a top-notch sterile and dust-free production environment, with a cleanroom that meets the Class 10,000 standard and is equipped with advanced air purification systems. This ensures that every detail in the production process is free from external contamination. Such an environment not only guarantees the cleanliness of our products but also provides a solid foundation for the safety and reliability of medical devices and precision communication electronics.

Injection Molding of Special Materials

Our company excels in the injection molding processing of special materials, with extensive experience and professional expertise. Whether it’s medical-grade PC, biocompatible materials, or other high-performance special materials such as PEEK, LCP, PPSU, etc., we can precisely control their injection molding characteristics to ensure high precision and stable performance of the products, meeting customers’ customized needs for special material products.

FAQs

What information do we need to provide for injection molding quotation?

As a professional OEM manufacturer, typically, you will need to provide us with 2D drawings and 3D drawings so that we can provide a mold quotation and proceed with manufacturing more quickly. Supported 2D drawing formats include AI, PDF, DWG, CAD, DXF, DLG, etc. Supported 3D drawing formats include STP, STEP, etc.

We don't have product drawings, only a sample. Can you make it?

For products with less stringent precision requirements, we can provide processing services based on the sample. However, providing 2D or 3D drawings will allow us to understand your needs more accurately and provide a quotation more quickly.

What is your mold production capacity?

We have professional mold designers and experienced technicians. We have over 150 employees and over 180 imported advanced mold manufacturing equipment. Our annual mold production capacity can reach 300 sets.

What materials can you process for injection molding?

In addition to common engineering plastics, we can also process injection molding materials such as PFA (soluble polytetrafluoroethylene), FEP, PA66, PEI, PVDF, PBT, POM, PPS, PEEK, LCP, PPSU, etc.

What if the produced products do not meet the requirements?

Our factory strictly follows the drawing accuracy provided by the customer for installation and manufacturing. We will also communicate with the customer regarding the usage and precision requirements of the mold. If the mold does not meet the customer’s requirements and it is due to our manufacturing issue, we will be responsible for arranging rework. However, if the product is scrapped due to errors in the buyer’s drawings, it will be negotiated separately.

How long does it take from placing an order to receiving the samples?

It depends on the difficulty and quantity of the product. In most cases, you will receive the samples within 40-60 days after placing the order. (However, if it coincides with holidays such as the Spring Festival or National Day, the delivery time will be extended.)
