PFA injection molding - Customized Medical Precision Special Plastic Injection Mold Parts Machining Manufacturer

Custom PFA/PVDF/FEP Injection Molding

We specialize in the production of high-purity PFA injection molded products, utilizing premium materials to ensure minimal metal ion leaching and exceptional purity. We precision-machine the products, making it difficult to find any black spots, even under 100x magnification. They are ideal for the semiconductor industry, where purity requirements are extremely high, ensuring stable production processes and enhanced product quality.

Produced in a ISO Class 6 cleanroom
The fastest T1 sample for injection molding is available in 4 weeks.
Metal ion leaching can reach ppb (parts per billion) levels
We are certified of ISO 9001, ISO 13485, ISO 14001, and IATF 16949.
Various material options: PEEK, LCP, PPSU, PFA, PPS, PA, PEI and many other plastics.

Upload a drawing to get the best price for your program!

Custom PFA/PVDF/FEP Injection Molding

PFA injection molding technology and process is a special fluoroplastic molding solution tailored for high purity, high corrosion resistance and high stability requirements. Its core lies in dedicated mold design, strict process control and a clean production system.

This technology is widely applied in semiconductor high-purity fluid pipe fittings, valve bodies, joints, nozzles and chemical corrosion-resistant components. It can deliver highly reliable results from structural design, mold development to stable mass production, meeting the stringent requirements of high-end industries for purity, performance and long-term stability.

Molding and Mass Production

Through multiple rounds of mold trials (T1, T2, etc.), we verify the mold performance, adjust details such as gates and cooling systems, and ensure that the final product quality meets standards while optimizing production efficiency. We strive to meet customer requirements to the greatest extent possible.

Ultrapure Water Cleaning

Ultrapure water cleaning is a crucial step in producing our high-purity PFA injection molded products. By leveraging the high purity and low impurity characteristics of ultrapure water, it effectively removes tiny particles, ions, organic matter, and other impurities from the product, ensuring the product’s purity.

ISO Class 5 Cleanroom Laboratory

The Class 5 cleanroom laboratory is a key facility for inspecting the cleanliness of PFA injection molded products. This laboratory strictly controls parameters such as air cleanliness, temperature, and humidity to ensure that the inspection environment meets extremely high standards.

Introduction of PFA/PVDF/FEP Molding

Yize Mould has an experienced team of PFA injection molding, proficient in a variety of design software and complex structure optimisation, focusing on the innovative design of high-purity PFA injection molded products.

2007

Founded in

ISO Class 6

Cleanroom

1000㎡

Cleanroom

100x

No impurities

Cases

PFA Straight Valve

Our Derong Yuandao semiconductor-grade high-purity PFA fittings have undergone multiple mold trials and meticulous revisions before mass production, all to ensure that customers receive the utmost quality. During the production process, we carefully machine the fittings in a Class 1000 cleanroom and, after production, rigorously inspect and package them in a Class 100 cleanroom laboratory. Every step is closely monitored to ensure that each product is a masterpiece, and no defective items are delivered to customers.

Product Material:	PFA PW500 (Type C) PFA 211SH (Type A)
Produce Environment:	Class 1000 Cleanroom
MOQ:	No MOQ
Price:	Contact us to get price list & catalog.
Delivery Date:	Mostly 3~7 days, depends on quantity of product.

Teflon injection Molded Products

PFA Teflon injection-molded products are renowned for their outstanding corrosion resistance and high-temperature resistance. We use high-quality PFA materials and precision injection molding techniques to create finished products with smooth surfaces and stable dimensions. These products exhibit excellent electrical insulation and chemical stability, making them widely applicable in the chemical, semiconductor, and medical industries. They meet customers’ needs for use in extreme environments and are an ideal choice for high-end industrial applications.

Injection Molding Materials:	LCP PBT PA66 PEEK PFA Other Plastics
Mold Materials:	P20 (for low and medium pressure molds), S136 (corrosion resistance and high precision requirements), H13 (high temperature resistance), 1.2738 (pre-hardened steel for medium precision), NAK80 (excellent polishability), 420 (high corrosion resistance), and so on, depending on client's needs.
Price	Negotiate Directly
Delivery Time	Mostly around 40 days, depending on how difficult the product is to produce

PFA Wafer Cleaning Carrier‌

The PFA Wafer Cleaning Carrier is a high-purity loading basket specifically designed for the handling of wafers, workpieces and components during ultra-pure chemical cleaning, pickling, drying, transportation and storage processes. It is typically manufactured via injection molding or welding assembly, and is fully compatible with cleaning machines, pickling tanks and automated material handling systems.

Injection Molding Materials:	LCP PBT PA66 PEEK PFA Other Plastics
Mold Materials:	P20 (for low and medium pressure molds), S136 (corrosion resistance and high precision requirements), H13 (high temperature resistance), 1.2738 (pre-hardened steel for medium precision), NAK80 (excellent polishability), 420 (high corrosion resistance), and so on, depending on client's needs.
Price	Negotiate Directly
Delivery Time	Mostly around 40 days, depending on how difficult the product is to produce

PFA Tee Needle Valve

Product Material:	PFA PW500 (Type C) PFA 211SH (Type A)
Produce Environment:	Class 1000 Cleanroom
MOQ:	No MOQ
Price:	Contact us to get price list & catalog.
Delivery Date:	Mostly 3~7 days, depends on quantity of product.

Data of High Purity PFA/PVDF/FEP Injection Molding

	Data
Injection Mold Tolerance	±0.015 mm
Thin-wall Injection Molding up to	0.15 mm
Min. Injection Molding Tolerance	±0.05 mm
Mold Materials	S136, SKD11, P20 etc. Depends on the client’s needs.
Available Injection Molding Materials	PC, PP, PA66, PEEK, LCP, PPSU, PFA, FEP etc.
Mold Life	100,000-1,000,000 Shots
Main products	Automotive connectors, medical devices, medical supplies, PFA Teflon injection molding, electronic communication products, other precision injection molding, etc.
Injection Molding Size	Max. 320mm，450g
Gate Design	Spot Gate, Hot Runner, Side Gate, etc.
Delivery time:	Usually around 40 days, depending on the difficulty of the product.

Derong Yuandao Product Catalog

Derong Yuandao specializes in the production of semiconductor-grade high-purity PFA tube fittings, striving to become the industry leader in PFA tube fittings in China and even globally!

Steps to produce PFA/PVDF/FEP molded products

High-purity PFA molded products are highly favored for their excellent corrosion resistance, high-temperature stability, and low permeability. From product design to shipment, the production process of PFA molded products is rigorous and precise, ensuring the outstanding quality of the products.

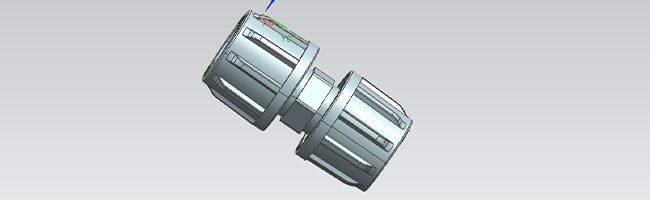

/01 Product Design

During this stage, engineers carefully design the fittings based on customer needs and usage environment, taking into account factors such as size, shape, pressure rating, and connection method. The design process not only aims to meet functional requirements but also ensures the product's aesthetics and ease of use. With the help of advanced CAD software, engineers can simulate a 3D model of the fitting, providing accurate data support for subsequent mold design and manufacturing.

/02 Mold Design

Molds are key tools in the production of high-purity PFA fittings, and their design quality directly affects the precision and surface quality of the products. Designers carefully calculate the various dimensions and parameters of the mold based on the product design drawings to ensure that the mold can accurately replicate the shape and features of the product. At the same time, they also consider details such as mold material selection, processing technology, and ejection methods to ensure the durability and production efficiency of the mold.

/03 Mold Machining and Manufacturing

The mold manufacturing stage is the process of converting design drawings into physical molds. Using high-precision CNC machines and advanced processing techniques, technicians precisely machine the various components of the mold, assemble and debug them. Additionally, since PFA produces corrosive gases during injection molding, the mold needs to be made from special steel. Strict quality control during this process is crucial to ensure the quality of the mold.

/04 Mold Trial

The mold trial stage is an important part of verifying the mold in practice. Through mold trials, we can check whether the mold's molding effect, product size, and surface quality meet the design requirements. Furthermore, during the mold trial, we can optimize the production process to improve the product's purity. If there are any issues, appropriate adjustments need to be made to the mold components to ensure that the mold can produce qualified products.

/05 Mass Production

After the mold trial is completed, we will carry out mass production in a Class 1000 cleanroom. We have a professional production team, a clean production environment, and advanced production equipment, which not only improves production efficiency but also ensures product quality, ensuring that the products can meet customers' stringent technical requirements and produce products that are magnified hundreds of times without black spots.

/05 Quality Inspection and Shipment

After the production of the products is completed, we will further remove impurities adhering to the product surface by cleaning them with ultrapure water and drying them. Then, the products are sent to a Class 100 cleanroom, where we will conduct product inspection, assembly, and packaging for shipment. Only then can Derong Yuandao high-purity PFA fittings be considered complete. Afterwards, we will also provide after-sales support and improve our products based on customer feedback.

Yize Mould
Various Precision Plastic Injection Molding Solutions Provider

During the injection molding process, it is critical to select the right solution based on product requirements, production volume, material properties and cost. Different injection molding solutions have different focuses and need to be selected according to specific needs in order to maximize production efficiency, reduce costs and ensure product quality.

Automotive Connector

Our company specializes in manufacturing automotive connectors using high-performance materials to ensure stable operation under extreme conditions. The products have now obtained IATF 16949 certification. With outstanding electrical and mechanical properties, they are suitable for various complex automotive electrical systems, providing a solid guarantee for automotive safety performance.

Thin-wall injeciton molding & Micro molding

Our thin-wall injection molding and micro molding products utilize high-precision molds and advanced injection molding techniques to achieve precise molding of small sizes and complex structures, with injection molding accuracy reaching 0.02mm. These products are widely used in medical devices, micro-electromechanical systems (MEMS), and other fields, featuring high precision and excellent performance to meet the high demand for miniaturized components in the market.

High temperature resistant plastic injection molding

Our company specializes in providing injection-molded products made from high-temperature materials such as PEEK, LCP, and PPSU. These materials exhibit excellent high-temperature resistance, corrosion resistance, and mechanical properties. The products are suitable for high-temperature working environments, such as automotive electronics, aerospace, and other fields, ensuring stable and reliable operation under extreme conditions.

Trusted Precision Plastic Injection Molding Factory

Dongguan Yize Mould Co., Ltd. was established on January 1, 2007, with 150 employees, and is located in Chang’an Town, Dongguan City, known as the “Key Town of China’s Mould Industry”.

Since its establishment, Yize has always focused on technology as its core, specializing in automotive connectors, thin-wall injection molding, micro molding, precision injection molding, and special material injection molding, and has gradually expanded its business to cover overall solutions for PFA Teflon products, precision medical devices, and various special engineering plastic precision structural components.

Yize Mould continuously innovates and develops, becoming a leader in the field of high-end precision mold manufacturing and related products, and is a trustworthy manufacturer of precision injection molds.

Applications

Whether it’s emerging industries such as new energy vehicles, photovoltaic semiconductors, and medical equipment, or traditional industries like machinery and equipment, chemicals, Yize Mould always provides customers with the highest quality customized cleanroom injection molding services. While meeting the needs of different industries, we maximize cost savings for our customers.

Why Choose Us?

/01
Professional Team

Yize Mould has been specializing in precision molds, non-standard precision parts, and related products since 2006, and today boasts a professional team of 150 people who can quickly respond to customer needs.

/02
Advanced Equipment

The company has many advanced processing equipments imported from the USA and Japan, and injection moulding production in a thousand-level workshop. The purity of the products is leading even in the world.

/03
Quality Assurance

Yize Mould always adheres to the principle of quality first, with over 50 precision testing instruments and a professional quality management team to ensure that no defective products reach our customers!

Magnified a hundred times, no black spots visible

Yize Mould boasts a top-notch sterile and dust-free production environment, with a workshop cleanliness standard reaching the thousand-level, equipped with an advanced air purification system to ensure that every detail in the production process is free from external contamination. This environment not only guarantees the cleanliness of the products but also provides a solid foundation for the safety and reliability of high-purity PFA fittings. Even under a microscope magnified 100 times, impurities are hardly visible in the products.

Self-designed, safe, and durable

Our high-purity PFA fittings not only exhibit extremely high purity but also adopt a coarse thread structure designed in-house. By strictly controlling the thread pitch, we have effectively enhanced the tightness and stability of the connections, ensuring that the products maintain safe and stable performance in various application environments. They are robust and durable, resistant to wear and tear.

Customized PFA/PVDF/FEP Injection Molded Components

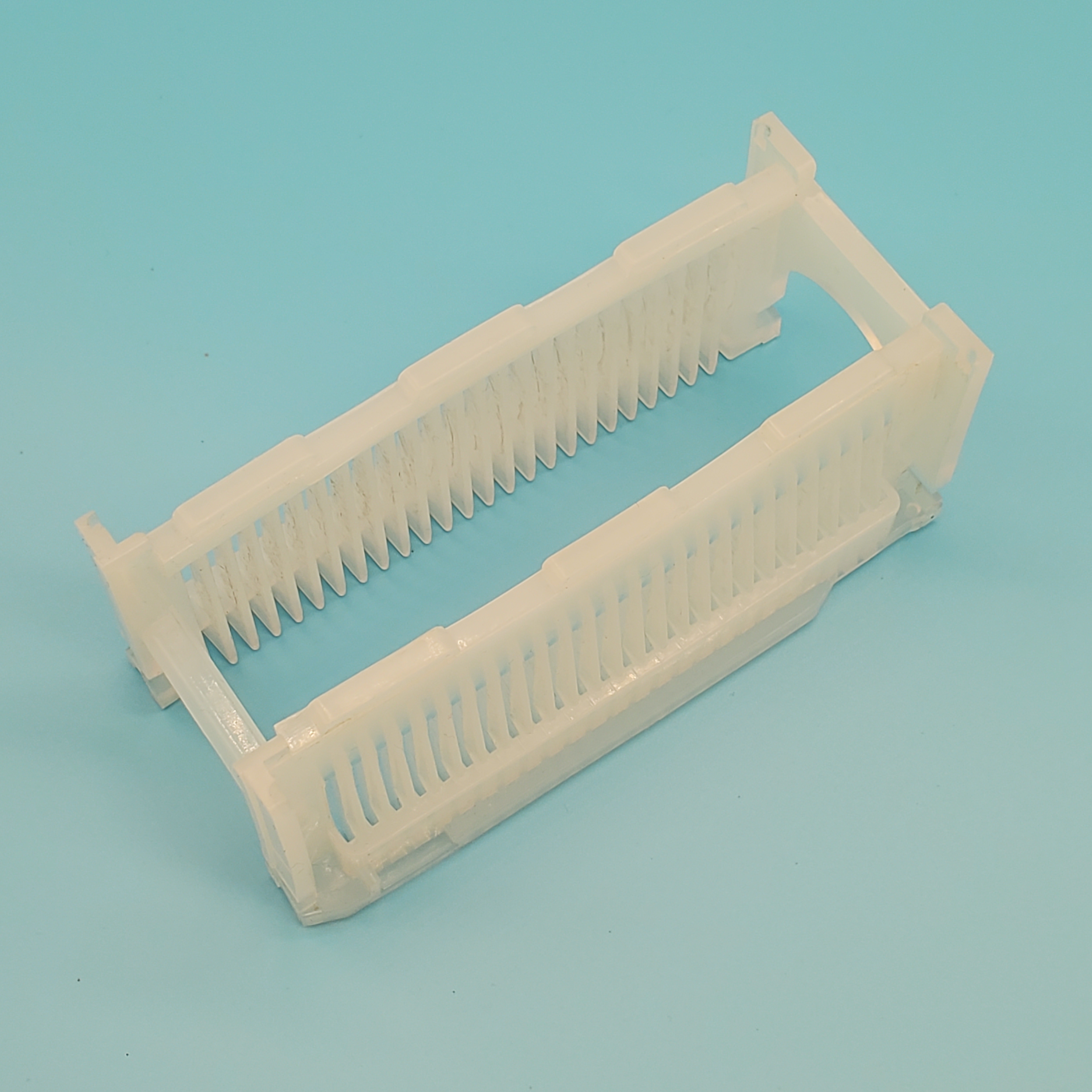

The image on the right shows a PFA wafer cleaning carrier we developed via mold opening and OEM production for a semiconductor client. This project not only demonstrates our company’s capabilities in special fluoroplastic injection molding and customized manufacturing, but also highlights our technical advantages in material selection and quality control. Upholding the customer-first principle, we will continue to deliver high-quality, high-performance products to meet clients’ diverse requirements.

High-Precision Manufacturing‌: The product successfully achieves the client's required precision of ‌±0.02mm‌, showcasing our strong expertise in the field of precision injection molding.
Specialized Material Application‌: The adoption of PFA material not only meets the client's specific requirements, but also delivers outstanding performance in the durability and reliability of the component.
Robust Customization Capability‌: We are capable of precisely manufacturing and supplying high-quality customized products in strict accordance with clients' drawings and technical specifications.
Targeted Professional Applicability‌: This PFA product is purpose-built for semiconductor wafer cleaning, featuring excellent electrical insulation and exceptional corrosion resistance, which fully prevents semiconductor wafers from contamination.
Superior Electrical Performance‌: Premium-grade materials and precision manufacturing endow the product with high insulation properties and ultra-low contact resistance, fully satisfying the stringent requirements of communication systems.
Cost-Competitive Pricing‌: On the premise of guaranteed quality, we have optimized production workflows and implemented rigorous cost control to offer highly competitive OEM pricing, which has earned us the client's full trust and formal orders.

FAQs

What information do we need to provide for injection molding quotation?

As a professional OEM manufacturer, typically, you will need to provide us with 2D drawings and 3D drawings so that we can provide a mold quotation and proceed with manufacturing more quickly. Supported 2D drawing formats include AI, PDF, DWG, CAD, DXF, DLG, etc. Supported 3D drawing formats include STP, STEP, etc.

We don't have product drawings, only a sample. Can you make it?

For products with less stringent precision requirements, we can provide processing services based on the sample. However, providing 2D or 3D drawings will allow us to understand your needs more accurately and provide a quotation more quickly.

What is your mold production capacity?

We have professional mold designers and experienced technicians. We have over 150 employees and over 180 imported advanced mold manufacturing equipment. Our annual mold production capacity can reach 300 sets.

What materials can you process for injection molding?

In addition to common engineering plastics, we can also process injection molding materials such as PFA (soluble polytetrafluoroethylene), FEP, PA66, PEI, PVDF, PBT, POM, PPS, PEEK, LCP, PPSU, etc.

What if the produced products do not meet the requirements?

Our factory strictly follows the drawing accuracy provided by the customer for installation and manufacturing. We will also communicate with the customer regarding the usage and precision requirements of the mold. If the mold does not meet the customer’s requirements and it is due to our manufacturing issue, we will be responsible for arranging rework. However, if the product is scrapped due to errors in the buyer’s drawings, it will be negotiated separately.

How long does it take from placing an order to receiving the samples?

It depends on the difficulty and quantity of the product. In most cases, you will receive the samples within 40-60 days after placing the order. (However, if it coincides with holidays such as the Spring Festival or National Day, the delivery time will be extended.)
