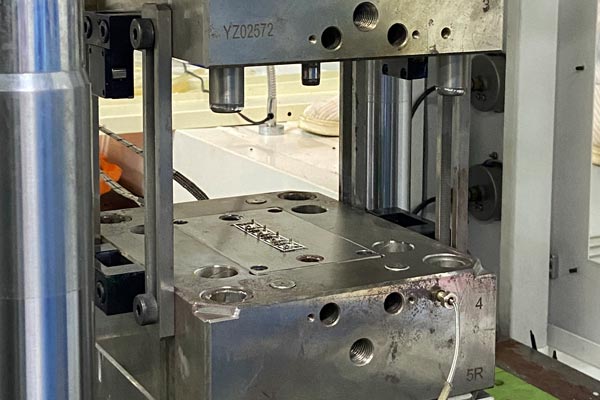

Gas-assisted injection molding technology injects high-pressure gas into the mold cavity to push the melt forward, delivering significant advantages in weight reduction, sink mark elimination, and internal stress reduction. However, this process demands extremely precise parameter matching, and several typical defects frequently occur in actual production. The following analysis covers six high-frequency issues and provides systematically validated solution paths.
1. Gas Breakthrough
Gas breakthrough occurs when high-pressure gas penetrates the melt interface, creating a through-channel inside the part that severely compromises structural strength.
Solution: Appropriately increase the pre-fill ratio so that the melt fully contacts the cavity wall before gas injection. Simultaneously raise the injection temperature and melt temperature to enhance material flowability. Shorten the gas delay time so that gas completes filling while the melt is still fluid. If necessary, switch to a material with higher flowability to reduce the risk of gas penetration.
2. No Cavity or Cavity Too Small
This defect manifests as the failure to form the expected hollow cavity after gas injection, or the cavity being significantly undersized, directly affecting weight reduction and mechanical performance.
Solution: Reduce the pre-fill ratio to reserve more space for gas. Increase the melt temperature and gas pressure to enhance gas penetration capability. Shorten the gas delay time while extending the gas holding and pressure release time. Select a material with higher flowability. Appropriately increase the gas channel cross-section. Adopt side-cavity gas injection if necessary. In addition, simultaneously check whether the gas needle has any fault or blockage, and whether the gas pipeline has any leaks, eliminating equipment-level interference factors.
3. Surface Sink Marks
Sink marks are one of the most common cosmetic defects in gas-assisted molding, typically appearing at wall thickness transition zones.
Solution: Reduce the fill ratio and melt temperature to minimize material over-accumulation. Increase the holding pressure to ensure adequate melt compensation. Lower the mold temperature to accelerate surface solidification. At the same time, increase the gate diameter, runner cross-section, and gas channel size to improve melt flow uniformity.
4. Weight Fluctuation
Unstable part weight directly affects cost control and batch consistency, making it a priority process issue in mass production.
Solution: Reduce the injection speed to improve filling controllability. Increase back pressure to achieve more uniform melt density. Optimize mold venting design to avoid gas entrapment causing incomplete filling. Adjust the gate position or increase the gate size to improve flow consistency as melt enters the cavity.
5. Gas Channel Wall Too Thin
Excessively thin gas channel walls significantly reduce part structural strength and may cause cracking failure at stress-bearing locations.
Solution: Reduce the injection speed to prevent the melt from filling too quickly and compressing the gas channel space. Appropriately lower the barrel temperature and gas pressure to reduce gas erosion on the wall. Extend the gas delay time so that sufficient wall thickness forms before gas acts. At the same time, increase the gas channel design dimensions to structurally guarantee minimum wall thickness requirements.
6. Gas Backflow Into the Screw
Gas flowing backward into the barrel screw area not only affects the filling quality of the next shot but may also cause screw wear and process instability.
Solution: Extend the melt holding time to maintain sufficient sealing pressure before the melt solidifies. Lower the nozzle temperature to accelerate gate area solidification and form an effective seal. Appropriately reduce gas pressure to decrease the backflow driving force. Redefine the gas injection pressure curve to make the transition between gas injection and holding stages more precise. Select a material with slightly lower flowability to accelerate gate freeze-off. Meanwhile, reduce the gate diameter or adjust the gate position to strengthen the sealing effect.
FAQ
Q: What is the biggest process challenge of gas-assisted molding compared to traditional injection molding?
A: The biggest challenge lies in the precise matching of gas injection timing with the melt state. Injecting gas too early causes breakthrough, while injecting too late prevents the formation of an effective cavity. Extensive mold trials are required to lock in the optimal parameter window.
Q: Which materials are more suitable for gas-assisted molding?
A: Semi-crystalline materials such as PP, PA, and PE are the preferred choices for gas-assisted molding due to their good flowability and high shrinkage rates. Amorphous materials like PC and ABS can also be used, but they demand stricter control over process parameters.
Q: What is the priority order for adjusting parameters when defects occur in gas-assisted molding?
A: The recommended troubleshooting sequence is as follows: first, check whether the gas circuit system has any hardware issues such as leaks or blockages; second, adjust the gas delay time and pressure curve; finally, optimize injection molding parameters such as temperature and speed. Adjusting process parameters before ruling out hardware issues often yields half the result with twice the effort.
