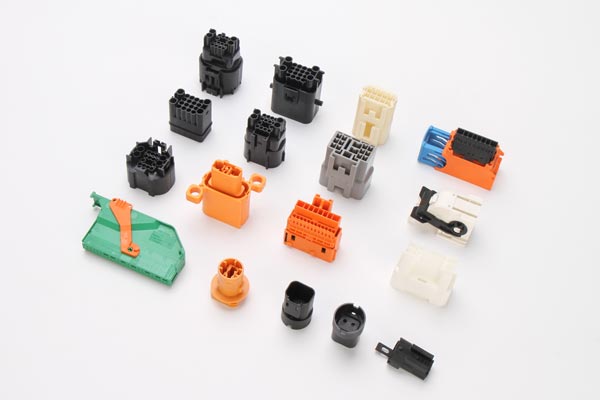

Warpage deformation in injection-molded parts is one of the most common defects in plastic molding. It directly affects product dimensional accuracy, surface quality, and assembly performance. To identify its root causes, a systematic analysis must be conducted across four dimensions: material, mold, process, and product design. On the material side, the inherent shrinkage characteristics of the plastic are the fundamental cause. Differences in shrinkage rates between different materials or between batches of the same material, as well as uneven molecular orientation, all lead to uneven internal stress distribution and ultimately cause warpage. The impact of mold design is critical. Improper gating system design, such as unreasonable gate location, quantity, or size, results in imbalanced melt flow and uneven cooling. Poor cooling system design, such as uneven coolant channel layout or insufficient cooling efficiency, causes different cooling rates across the part, generating thermal stress. In addition, an improperly designed ejection system may also cause deformation during the demolding stage.
From the perspective of molding process parameters, temperature, pressure, and time are the three key factors. Barrel temperature and mold temperature that are too high or too low both affect melt fluidity, the filling process, and the cooling rate, exacerbating uneven shrinkage. Insufficient or excessive injection pressure and holding pressure, as well as mismatched holding time, fail to effectively compensate for melt shrinkage, easily leading to sink marks or overpressure stress. Insufficient cooling time means the part is ejected before it is fully solidified, making deformation highly likely. If the product structure itself has excessive wall thickness variation, insufficient ribs or support structures, or asymmetric geometry, it will inherently cause inconsistent cooling shrinkage and internal stress concentration.
Improving warpage requires a comprehensive approach. On material selection, priority should be given to materials with low and stable shrinkage rates, and glass fiber or other reinforcing fillers should be added when necessary to improve dimensional stability. Mold design optimization is the core. With the assistance of mold flow analysis software, gates and cooling channels should be strategically arranged to ensure balanced flow and uniform cooling, while the ejection mechanism should also be optimized. Precise control of process parameters is essential. Based on material and product structure characteristics, appropriate melt temperature, mold temperature, multi-stage injection and holding pressure curves, and sufficient cooling time must be set. For product design, wall thickness should be kept as uniform as possible, abrupt transitions should be avoided, and overall rigidity should be enhanced through the addition of ribs. In addition, post-molding fixtures or annealing treatment can effectively release internal stress and correct minor deformation. In summary, systematically identifying root causes and implementing full-process control from the design front end to process execution is the key to effectively preventing and reducing warpage in injection molded parts.
1. Material Dimension—Inherent Characteristics Determine Deformation Tendency
The shrinkage characteristics of the plastic itself are the root cause of warpage. Shrinkage rates vary significantly between different materials, and even for the same grade of material, shrinkage rate deviations may occur between batches due to fluctuations in additive content. More critically, uneven molecular orientation leads to imbalanced internal stress distribution, which is the deepest driving force behind warpage deformation.
2. Mold Design Dimension—The Core Variable of Molding Quality
The rationality of the gating system directly determines the uniformity of melt filling. Misplaced gate location, insufficient gate quantity, or undersized gate dimensions all cause flow imbalance and cooling differences. The design of the cooling system is equally critical—uneven channel layout or insufficient cooling efficiency results in different cooling rates across the part, and the resulting thermal stress is the primary trigger for warpage. In addition, an improperly designed ejection system may also introduce additional deformation at the moment of demolding.
3. Process Parameter Dimension—The Key Link in Process Control
Temperature, pressure, and time form the three pillars of process control. When barrel temperature and mold temperature deviate from the optimal window, melt fluidity and cooling rate are significantly affected, exacerbating uneven shrinkage. Improperly set injection pressure and holding pressure, or holding time that does not match the material’s solidification characteristics, both fail to effectively compensate for shrinkage, easily causing sink marks or overpressure stress. Insufficient cooling time means the part is ejected before it is fully solidified, making deformation almost inevitable.
4. Product Structure Dimension—Latent Risks at the Design Source
Design defects such as excessive wall thickness variation, insufficient ribs or support structures, and asymmetric geometry will inherently cause inconsistent cooling shrinkage across different regions, forming internal stress concentration. If these issues are not eliminated at the design stage, no amount of subsequent process optimization can fundamentally resolve the warpage.
Improvement Approach—Full-Process Systematic Control
Material side: Prioritize materials with low shrinkage rates and high batch-to-batch stability. When necessary, introduce reinforcing fillers such as glass fiber to enhance dimensional stability.
Mold side: Use mold flow analysis software to optimize gate and cooling channel layout, ensuring balanced flow and uniform cooling, while also refining the ejection mechanism design.
Process side: Based on material characteristics and product structure, precisely set melt temperature, mold temperature, multi-stage injection and holding pressure curves, and ensure adequate cooling time.
Design side: Keep wall thickness as uniform as possible, avoid abrupt cross-section transitions, and enhance overall rigidity through the rational addition of ribs.
Post-processing side: For minor deformation, fixturing or annealing treatment can be used to release internal stress and achieve effective correction.
Systematically identifying root causes and implementing full-process control from the design front end to process execution is the core path to effectively preventing and reducing warpage in injection molded parts.
FAQ
Q: Are warpage and shrinkage in injection molded parts the same defect?
A: They are closely related but fundamentally different. Shrinkage is the physical phenomenon of volume reduction as the material cools, while warpage is the shape deviation caused by uneven shrinkage. Shrinkage is the cause; warpage is the effect. Controlling shrinkage uniformity is the prerequisite for preventing warpage.
Q: Can glass fiber reinforced materials completely solve the warpage problem?
A: Glass fiber reinforcement can significantly reduce the shrinkage rate and improve dimensional stability. However, if the product structure itself has severe wall thickness variation or design asymmetry, warpage may still occur. Material optimization must be used in conjunction with structural optimization to achieve the best results.
Q: How valuable is mold flow analysis in actual warpage improvement?
A: Mold flow analysis can predict filling imbalance, cooling differences, and stress distribution before tooling is built, helping engineers optimize gate location, channel layout, and process parameters in advance. This significantly reduces trial mold cycles and mold modification costs, making it one of the highest return-on-investment tools in warpage improvement.
Q: How effective is annealing treatment in correcting warpage deformation?
A: Annealing treatment can effectively release residual internal stress in the part and has a noticeable correcting effect on minor warpage. However, for severe warpage caused by structural design defects, annealing cannot solve the problem at its root. The issue must still be addressed at the mold or product design level.
